REFLECTIVE GLASS

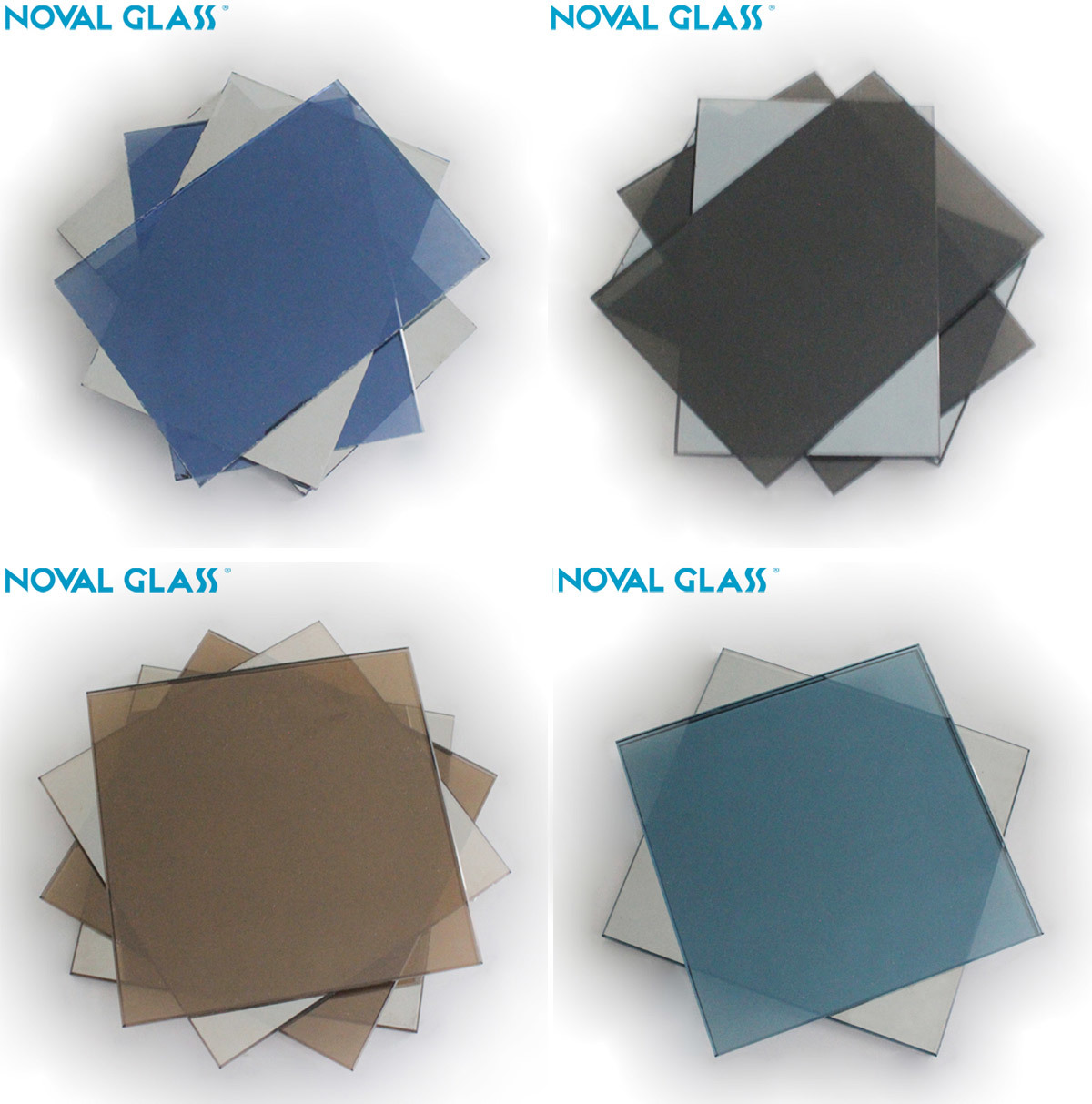

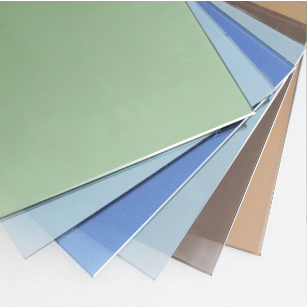

Glass Colors

F Green (Light Green), Dark Green
Ford Blue (Lake Blue), Dark Blue (Diamond Blue), Ocean Blue
Euro Bronze, Golden Bronze, Pink
Euro Grey (Light Grey), Dark Grey, Black

Thickness

4mm, 5mm, 5.5mm, 6mm

Thickness

2250*1650mm; 2440*1830mm; 3300*2140mm; 3300*2250mm; 3300*2440mm;3660*2140mm; 3660*2250mm; 3660*2440mm.
Download Inquiry
Retail price
0.0
Yuan
Market price
0.0
Yuan
Number of views:
1000
Product serial number
Category
FLOAT GLASS
Quantity
-
+
Stock:
0
1
Product description

INTRODUCTION

Rflective Glass is on-line coated float glass which has been carefully designed to meet the twin requirements of architects, the functional and the aesthetic. It is produced using CVD technology (chemical vapor deposition) that creates a perfectly uniform layer of metal oxide chemically bonded to the surface of the glass. The coating imparts a "mirror-like" facade to the Reflective Glass, giving it visual appeal while providing functional benefits like solar control and glare reduction. As this hard chemical layer is fully banded to the glass, the glass can be cut, bent, tempered, heat strengthened and laminated without affecting the coating. NOVAL reflective Glass is available in a range of performances to meet most environmental requirements in terms of solar control, thermal comfort and energy conservation. It is an exterior glass which is manufactured to meet the mast exacting standards in order to deliver high performance with ease in processing



FEATURES

  • Excellent optical performance
  • Excellent chemical stability, acid and alkali resistance
  • Film is chemically formed at high temperature with high wear ability
  • High color uniformity, gentle and elegant
  • Easy to machine and can be toughened and thermally curved.









OPTICAL PARAMETER

Glass

Visible Light

Sunlight

Shading Co-efficient (SC)

Sum of Transmittance of Solar Energy (%)

Transmittance (%)

Reflectance (%)

Direct Transmittance (%)

Direct Reflectance (%)

5mm F-Green Reflective

31.12

34.80

25.49

19.61

0.45

39.65

6mm F-Green Reflective

29.94

33.72

21.12

18.92

0.41

36.59

4mm Pink Reflective

30.66

36.06

47.82

29.17

0.60

53.76

6mm Pink Reflective

29.92

28.64

46.40

22.14

0.61

54.52

4mm Dark Blue Reflective

25.62

13.98

39.36

16.47

0.57

50.76

5mm Dark Blue Reflective

20.92

12.52

33.42

15.00

0.53

46.73

6mm Dark Blue Reflective

13.42

13.68

25.52

16.81

0.45

40.40

5mm Ford Blue Reflective

27.50

19.38

37.07

16.56

0.55

49.03

6mm Ford Blue Reflective

24.97

16.51

32.04

14.72

0.51

45.78

4mm Euro Grey Reflective

26.90

19.59

37.38

17.36

0.55

49.05

6mm Euro Grey Reflective

19.55

13.99

27.64

12.69

0.48

42.97

4mm Dark Grey Reflective

17.96

10.10

30.09

11.30

0.51

45.21

5mm Dark Grey Reflective

14.03

9.07

25.06

10.56

0.47

42.05

6mm Dark Grey Reflective

13.02

6.97

22.70

8.20

0.46

40.53
